SMT Pick and Place Mounter Machine in India

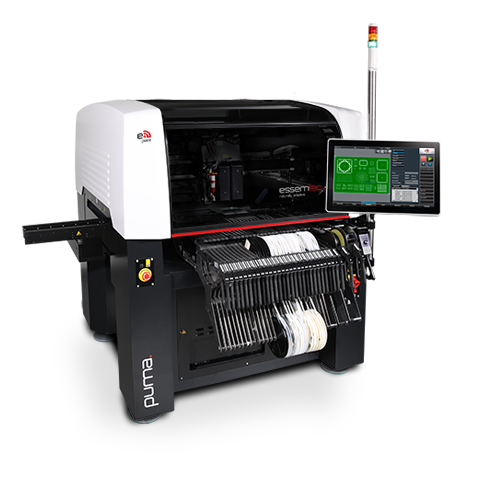

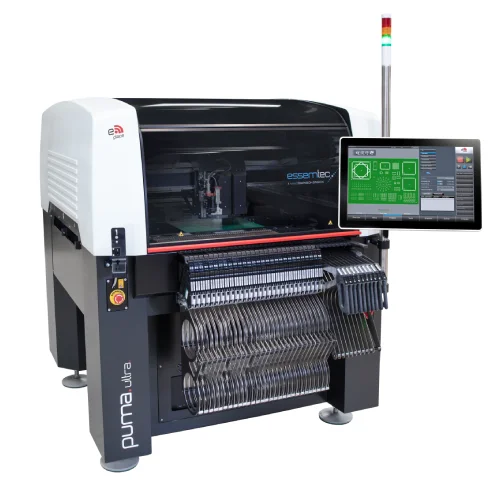

Brand: Essemtec, PUMA, Switzerland AG

MOUNTER


  • Highspeed placement and dispensing in single pass-through
  • Optimally 18000cph up to 54300cph in a line
  • Up to 280 feeder lanes on 2m²
  • No vibration, no deformation, no thermal deviations
  • Non-stop production with intelligent feeders
  • Fast, double-guided linear motors with no maintenance

_Specifications_

Puma4 Puma2 Puma
productivity Optimal placement speed 18,100 cph (4-axis) 11'200 cph (2-axis) 6'700 cph (1-axis)
  Optimal dosing speed - 145,000 points / h -
Feeder Feeder capacity 8 mm tape 280 (160 inline) 260 (140 inline) 260 (140 inline)
Components Components size range   01005 - 33 x 33 mm (optionally up to 80 x 80 mm)
accuracy Placement accuracy (x, y)   50 μm @ 3σ
PCB size Max. LP size 560 x 610 mm (22 x 24 "), optional 1,800 x 610 mm (71 x 24 ")
dimension Machine footprint   1'557 x 1'357 mm (61 x 53 ")

We’d love to help you boost your production efficiency.
Contact us.

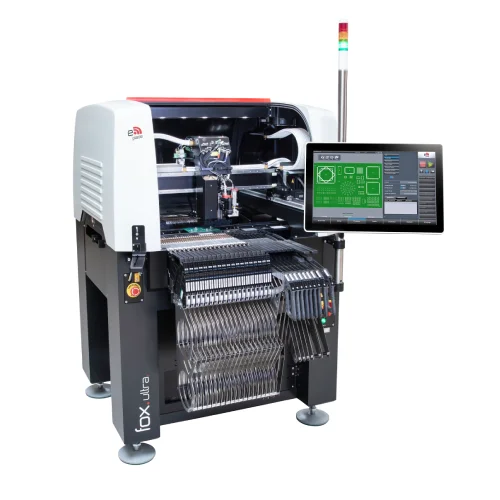

    Brand : Essemtec, FOX, Switzerland

    INTELLIGENT MODULAR ASSEMBLY


    Introducing - The Fox Pack - cutting edge technology. Expandable in any direction. The Fox can hold up to 200 feeders, which illustrates its dedication to high-mix productions. Due to its small footprint and low weight, the machine is ideal for productions with limited space, even for those located on upper floors.

    _Specifications_

        Fox4 Fox2 Fox
    productivity Optimal placement speed 18'800 cph (4-axis) 12,000 cph (2-axis) 7,000 cph (1-axis)
      Optimal dosing speed - 150,000 points / h -
    Feeder Feeder capacity 8 mm tape 200 (140 inline) 180 (120 inline) 180 (120 inline)
    Components Components size range   01005 - 33 x 33 mm (optionally up to 80 x 80 mm)
    accuracy Placement accuracy (x, y)   50 μm @ 3σ
    PCB size Max. LP size   406 x 305 mm (16 x 12 ")
    dimension Machine footprint   880 x 1090 mm (34.7 x 43 ")

    We’d love to help you boost your production efficiency.
    Contact us.
