X-RAY INSPECTION SYSTEMS

Scienscope’s X-Ray inspection systems division offers state of the art X-ray cabinet systems with the highest performance to price ratio in the industry today. All of our X-Ray Systems include several advanced and user friendly software tools which are required for a wide variety of inspection needs.
Scienscope X-Ray inspection systems are assured to meet your x-ray inspection needs.

Brand: SCIENSCOPE, USA

X-Spection 6000


The X-Spection 6000 is our most Technologically Advanced X-Ray Inspection System. As with all X-SCOPE platforms, it includes every advanced s/w tool required for a wide variety of applications. With more tilt and a rotating work table, the X-Spection 6000 is the ultimate in flexibility.

_Features_

  • Fully integrated, 130kV high power micro-focus closed x-ray tube
  • Spot size down to 5µ
  • 5” x 5“ or 4” x 3“ high resolution and ultra resolution CMOS digital flat panel image detector
  • 60° camera tilt for oblique angle viewing
  • 22” x 18” Inspection stage with 350° rotation
  • Color mapping camera with zoom window provides easy location and identification of faults
  • Z axis movement of the x-ray tube and detector
  • Computer controlled kV and mA settings
  • Computer controlled variable speed X-Y stage (and rotate)
  • Simple point and click, intuitive GUI provides access to create advanced inspection routines
  • BGA Void detection and automatic calculations
  • Easy macro recording for intuitive step and repeat programming
  • Various measuring tools for radius, area, perimeter, etc.
  • Industrial PC with Windows 7 PRO, 24” LCD flat panel display

_Specifications_

X-RAY TUBE
X-Ray Source: Micro-focus, integrated (closed)
Operating voltage: 130kV
Current: 0.32mA
Minimum Focal Spot Size: 5 Micron
Magnification up to: 800x

DIGITAL FLAT PANEL DETECTOR
Grayscale: 14 bit (16,384 shades of grayscale)
Speed: 10FPS (4×3 detector) or 30FPS (5×5 detector)
Resolution: 49.5μm (4×3 detector) or 99μm (5×5 detector)
Detector Size: 4” x 3” ultra-high resolution or 5” x 5” high resolution

WORK AREA
Sample Table Size: 560mm x 457mm / 22” x 18”
Inspection Area: 360mm x 290mm / 14.2” x 11.6”
Oblique Angle View: +60°

GENERAL MACHINE SPECS
Dimensions: 59” x 62.9” x 62.9” (78.6” including light tower)
1500mm x 1600mm x 1600mm (2000mm including light tower)
Weight: 1600kg /3527 lbs. (steel lead welded construction)
Power: 110-230 VAC 50/60 Hz (universal)
Industrial PC: Microsoft Windows 7 PRO (64-bit)

We’d love to help you boost your production efficiency.
Contact us.

    Brand: SCIENSCOPE, USA

    X-Scope 3000


    The X-Scope 3000 X-Ray Inspection System is the latest addition to the X-Scope platform. Based on the very popular X-SCOPE 2000, it adds a larger working area, more power and can use the same 130kV X-Ray source found in our flagship model, X-Spection 6000.

    _Features_

    • Fully integrated, 110 or 130kV high power micro focus closed X-ray tube
    • Spot size down to 5µ
    • 4”x3“ high resolution CMOS digital flat panel image detector
    • 50° detector tilt for oblique angle viewing 25.4” x 19.5” Inspection area
    • Color mapping camera with zoom window provides easy location and identification of faults
    • Z axis movement of the x-ray tube and detector
    • Computer controlled kV and mA settings
    • Computer controlled variable speed X-Y stage
    • Simple point and click, intuitive GUI provides access to create advanced inspection routines
    • BGA Void detection and automatic calculations
    • Easy macro recording for intuitive step and repeat programming
    • Various measuring tools for radius, area, perimeter, etc.
    • Industrial PC with Windows 7 PRO, 24” LCD flat panel display

    _Specifications_

    X-RAY TUBE
    X-Ray Source: Micro-focus, integrated (closed)
    Operating voltage: 110kV or 130kV
    Maximum Power: 16 W 50-130kV
    Minimum Focal Spot Size: 5
    Micron Magnification up to: 900x

    DIGITAL FLAT PANEL DETECTOR
    Grayscale: 14 bit (16,384 shades of grayscale)
    Speed: 40FPS
    Resolution: 49.5μm or 99μm
    Detector Size: 4” x 3” high resolution , 4” x 3” ultra-high resolution or 5” x 5” high resolution

    WORK AREA
    Sample Table Size: 645mm x 496mm / 25.4” x 19.5”
    Inspection Area: 595mm x 460mm / 23.4” x 18”
    Oblique Angle View: +50°

    GENERAL MACHINE SPECS
    Dimensions: 53.5” x 53.5” x 66” (81” including light tower)
    1358mm x 1358mm x 1677mm (2057mm including light tower)
    Weight: 1400kg /3080lbs (steel lead welded construction)
    Power: 110-230 VAC 50/60 Hz 300Wh (auto switching)
    Industrial PC: Microsoft Windows 7 PRO (64-bit)

    We’d love to help you boost your production efficiency.
    Contact us.

      Brand: SCIENSCOPE, USA

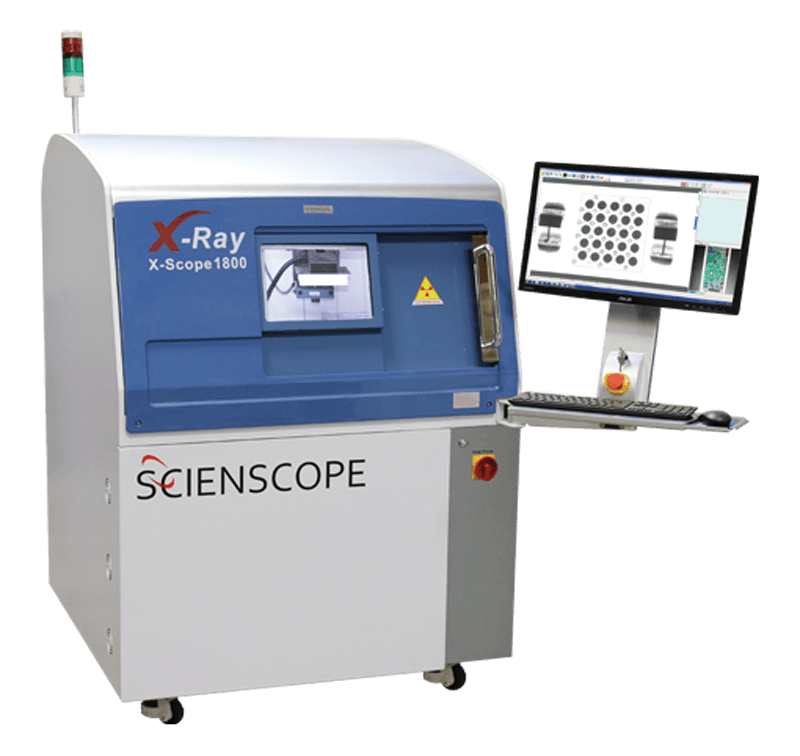

      X-Scope 1800


      The X-Scope 1800 X-Ray Inspection System is an entry level machine with high level features. A micro-focus x-ray source and CMOS digital flat panel image detector with tilting for oblique angle views are standard, all at an affordable price.

      _Features_

      • Fully integrated, 90kV high power micro-focus closed x-ray tube
      • Spot size down to 10µ from 5µ
      • 4” x 3“ high resolution CMOS digital flat panel image detector
      • 30° detector tilt for oblique angle viewing
      • 19.6” x 14.75” Inspection area
      • Color mapping camera with zoom window provides easy location and identification of faults
      • Z axis movement of the x-ray tube and detector
      • Computer controlled kV and mA settings
      • Computer controlled variable speed X-Y stage (and rotate)
      • Simple point and click, intuitive GUI provides access to create advanced inspection routines
      • BGA Void detection and automatic calculations
      • Easy macro recording for intuitive step and repeat programming
      • Various measuring tools for radius, area, perimeter, etc.
      • Industrial PC with Windows 7 PRO, 24” LCD flat panel display

      _Specifications_

      X-RAY TUBE
      X-Ray Source: Micro-focus, integrated (closed)
      Operating voltage: 90kV
      Current: 0.256mA / 0.18mA
      Minimum Focal Spot Size: 10 Micron
      Magnification up to: 500x

      DIGITAL FLAT PANEL DETECTOR
      Grayscale: 14 bit (16,384 shades of grayscale)
      Speed: 30FPS
      Resolution: 99μm
      Detector Size: 4” x 3” high resolution

      WORK AREA
      Sample Table Size: 496mm x 375mm / 19.5” x 14.75”
      Inspection Area: 450mm x 355mm / 17.75” x 14”
      Oblique Angle View: +30°

      GENERAL MACHINE SPECS
      Dimensions: 43.3” x 43.3” x 55” (70” including light tower)
      1100mm x 1100mm x 1400mm (1800mm including light tower)
      Weight: 800kg /1760 lbs. (steel lead welded construction)
      Power: 110-230 VAC 50/60 Hz (universal)
      Industrial PC: Microsoft Windows 7 PRO (64-bit)

      Brand: SCIENSCOPE, USA

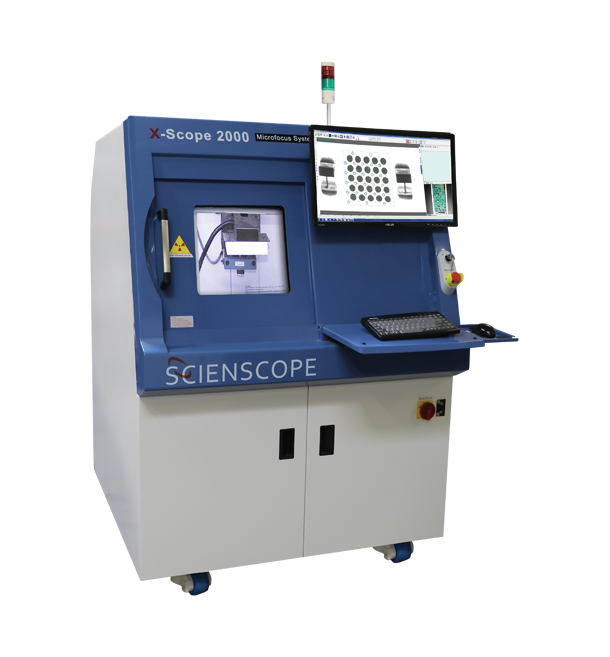

      X-Scope 2000


      The X-Scope 2000 X-Ray Inspection System is a full featured high-performance x-ray inspection instrument with an unbeatable price to performance ratio which includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.

      _Features_

      • Fully integrated, 90kV high power closed micro-focus x-ray tube
      • Spot size down to 5µ
      • 4”x3“ high resolution CMOS digital flat panel image detector
      • 50° detector tilt for oblique angle viewing
      • 21.75” x 19.5” Inspection area
      • Color mapping camera with zoom window provides easy location and identification of faults
      • Z axis movement of the x-ray tube and detector
      • Computer controlled kV and mA settings
      • Computer controlled variable speed X-Y stage
      • Simple point and click, intuitive GUI provides access to create advanced inspection routines
      • BGA Void detection and automatic calculations
      • Easy macro recording for intuitive step and repeat programming
      • Various measuring tools for radius, area, perimeter, etc.
      • Industrial PC with Windows 10 with a 24” LCD flat panel display

      _Specifications_

      X-RAY TUBE
      • X-Ray Source: Micro-focus, integrated (closed)
      • Operating voltage: 90kV
      • Current: 0.160mA
      • Minimum Focal Spot Size: 5 µ
      • Magnification up to 1000x
      DIGITAL FLAT PANEL DETECTOR
      • Grayscale: 14 bit (16,384 shades of grayscale)
      • Speed: 40FPS
      • Resolution: 99μm
      • Detector Size: 4” x 3” high resolution
      WORK AREA
      • Sample Table Size: 555mm x 496mm / 21.85” x 19.52”
      • Inspection Area: 510mm x 475mm / 20.07” x 18.70”
      • Oblique Angle View: +50°
      GENERAL MACHINE SPECS
      • Dimensions: 55.5” x 53.5” x 66” (81” including light tower) 1358mm x 1358mm x 1677mm (2057mm including light tower)
      • Weight: 1100kg /2425 lbs. (steel lead welded construction)
      • Power: 100-240 VAC 47/63 Hz (auto-switching)
      • Industrial PC: Microsoft Windows 10

      X-ray inspection systems offer state-of-the-art technology for accurate and thorough inspection of printed circuit boards (PCBs). These systems utilize X-ray imaging to provide detailed insights into the internal structure and quality of PCB assemblies, ensuring reliable detection of defects and compliance with industry standards.
      With our advanced X-ray inspection equipment, you can enhance the quality control process and identify potential issues before they impact the performance and reliability of your electronic products.
      Our X-ray inspection machines are designed to handle various PCB sizes and complexities, offering versatility for different manufacturing requirements. Equipped with high-resolution imaging capabilities and intuitive software interfaces, our machines provide clear visualization of solder joints, hidden connections, and component placement.
      This allows for a comprehensive analysis of factors such as solder voids, insufficient or excess solder, bridging, and component misalignment. With our x-ray PCB inspection machine, you can confidently assess the quality of your PCB assemblies and make informed decisions for process improvement and defect prevention.
      By incorporating non-destructive testing methods, our machines allow for quick and efficient inspection without damaging the PCBs. This saves time and reduces material waste, contributing to overall cost savings. Furthermore, our X-ray inspection systems enhance the reliability of your products by detecting defects that may go unnoticed with visual inspection alone.
