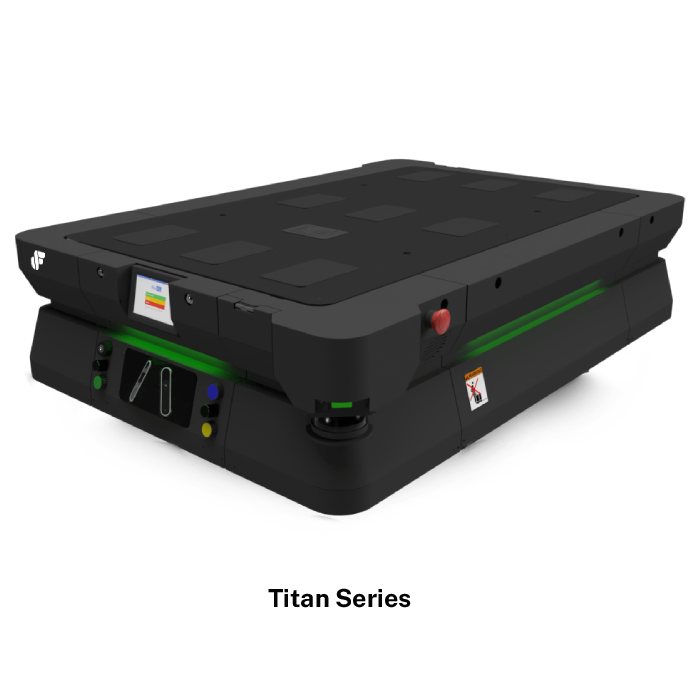

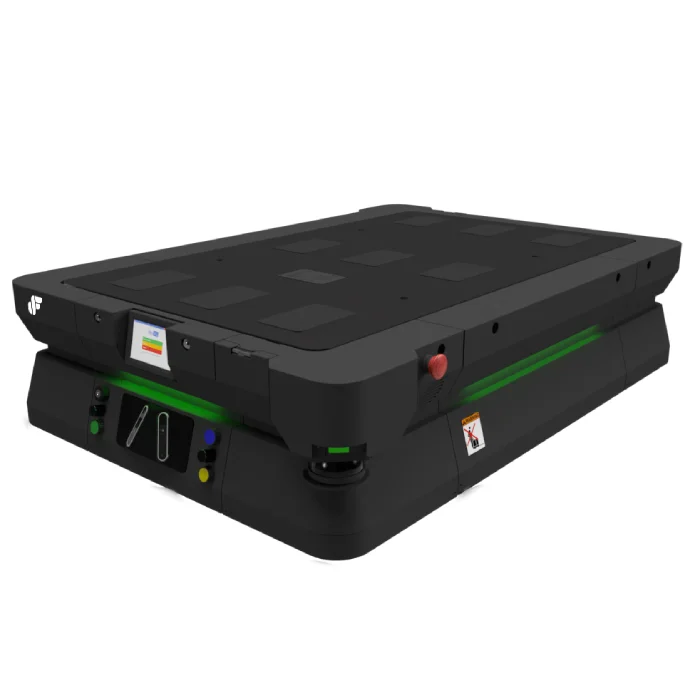

Titan MG
Magnetic Strip Guidance
Titan Series Magnetic Strip Guidance AMR is a mobile robot that can automatically navigate and transport materials from one location to another. It is suitable for (not limited to) manufacturing, textile, automotive, food & beverage, warehousing and hospital operations, etc.
Gallery
We’d love to help you boost your production efficiency. Contact us.
_Specifications_
| General | |
| Product Model | Titan-MG-S-10 |
| Base Dimension (WxLxH) | W: 810mm x L: 1220mm x H: 320mm |
| Navigation Method | MG: Magnetic |
| Performance | |
| Payload | 1000 kg |
| Maximum Speed | 60 m/min |
| Running Time (100%-10%) | 8 hours |
| Charging Time (10%400%) | 3 hours |
| Stopping Accuracy | MG: ±10mm |
| Travelling Direction | Forward ,Reverse, 90°/180* turn |
| Turning Radius | Zero (0) |
| Drive Method | Differential |
| System | |
| Charging Method | Automatic & Manual Charging available |
| Mode | Standalone / Fleet Management System (FMS) |
| Battery | LifePo4 Battery, 25.6V, 65Ah |
| Feature and Interface | |
| Safety Feature | 5m adjustable range Laser Scanner x2 Bumper Switch x2 Emergency Switch x2 |
| Safety Indicators | Color LED lighting, Music playback & Alarm |
| Motor Type | Industrial Servo Motor with Close Loop Drive |
| Onboard Interface | 7 inch Capacitive Touchscreen |
| WiFi Frequency | 2.4/5GHz |
| Operating System | NavWiz |
| Customisable I/O | 8 Input and 8 Output |
| Payload Handler | Not Included |
