Brand: OMRON- Japan

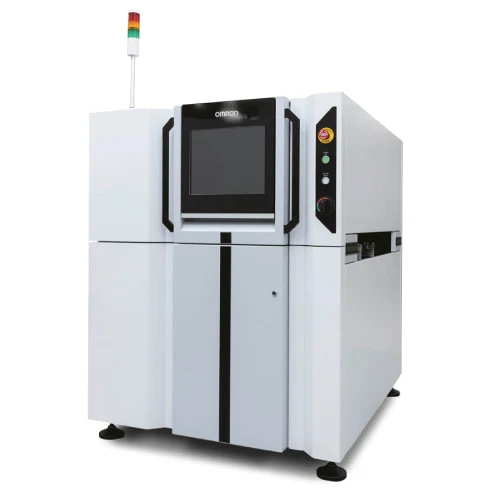

3D AOI
- Quantitative inspection based on international standards.
- High-precision solder shape reconstruction.
- AI inspection logic.
- Machine monitoring and predictive maintenance.
We’d love to help you boost your production efficiency. Contact us.
_Specifications_
| Allowable Panel Characteristics | VT-S1080-V2.0 | VT-S1040-V2.0 | VT-Z600-V2.0 | |
|---|---|---|---|---|
| Camera | Direct | 25Mpix | ||
| Oblique | 5Mpix | – | – | |
| Resolution | Direct | 12.5μm | ||
| Oblique | 10μm | – | – | |
| FOV | Direct | 52.5 x 52.5mm | ||
| Oblique | 25.9 x 19.4mm | – | – | |
| Inspection principle | Hybrid 3D Shape reconstruction MDMC*12 illumination + Phase shift (MPS *13 *14) |
Hybrid 3D Shape reconstruction MDMC*12 illumination + Phase shift (MPS *13 *14) |
2.5D Shape reconstruction MDMC*12 illumination |
|
| Supported PCB size | Size | Single lane: 50(W) x 50(D)～510(W) x 680(D)mm Dual lane: 50(W) x 50(D)～510(W) x 330(D)mm |
||
| Thickness | 0.4～4mm | |||
| Weight | 4Kg | |||
| Clearance | Clearance on PCB: 50mm from board surface Clearance under PCB: 50mm from the back of the board (including PCB warpage, deflection, component tolerance, etc.) |
|||
