Brand: OMRON- Japan

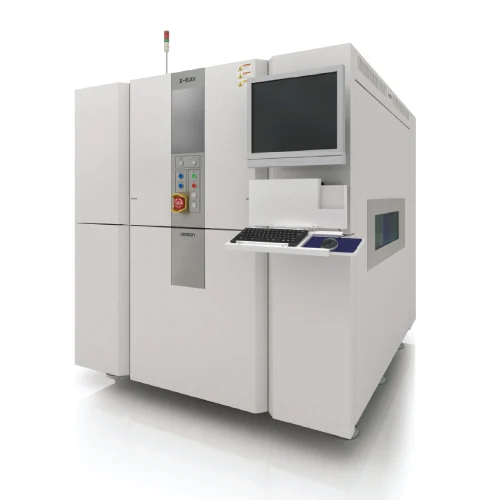

VT-X750 In-line Full Inspection System
- Criteria setting by Auto-Judge reduces the dependency on a dedicated programmer.
- Faster creation of new programs.
- Accelerated simulation for production preparation.
- Zero down time.
- Reduction of product radiation exposure.
_Specifications : VT-X750_
Item | Description | ||||
---|---|---|---|---|---|
Model | VT-X750 | VT-X750-XL | |||
Item | V3-H | V3-C | V3 | ||
Inspection object | BGA/CSP, inserted components, SOP, QFP, transistors, R/C chips, bottom-side terminal components, QFN, Power devices, POP, Press-fit CN, etc. | ||||
Inspection items | Void, open, non-wet, solder volume, shifting, foreign object, bridging, solder fillet, TH solder filling, solder ball, etc. (Selectable to applications) |
||||
Imaging system | Method | 3D-slice imaging by using parallel CT | |||
Resolution | 6, 8, 10, 15, 20, 25, 30 μm/pixel (selectable in the inspection program) |
3, 6, 8, 10, 15, 20, 25, 30 μm/pixel (selectable in the inspection program) |
10, 15, 20, 25, 30 μm/pixel (selectable in the inspection program) |
||
X-ray source | Micro-focus closed tube | ||||
X-ray detector | Flat panel detector | ||||
PCBA | Size | 50×50 ~ 610×515 mm (2×2 to 24×20 inch), Thickness: 0.4 ~ 5.0 mm (0.4 ~ 3.0 mm in 3 μm resolution) |
100×100 ~ 1200×660 mm, Thickness: 0.4 ~ 15.0 mm |
||
Weight | Less than 4.0 kg, less than 8.0 kg (option) | Less than 15 kg | |||
Component clearance *Maximum |
Top: 40 mm, 90 mm (option) | Top: 40 mm, Bottom: 50 mm | |||
Warpage | Less than 2.0 mm (Less than 1.0 mm in 3 μm resolution) | Less than 3.0 mm |
We’d love to help you boost your production efficiency. Contact us.

High-Speed CT X-Ray Automated Inspection- VT

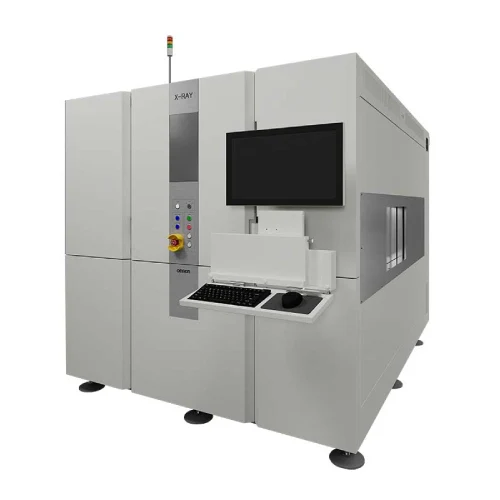

VT-X850 In-line Full Inspection System
- Stability inspection.
- Usability.
- Heavy and Large Product Inspection Capability.
- AI Enhanced Inspection Algorithms.
- High Power X-Ray Transmission.
_Specifications : VT-X850_
Item | Description | ||||
---|---|---|---|---|---|
Model | VT-X850 | ||||
Type | T1 | T2 | T3 | ||
Inspection object | Power devices, etc. | Power devices, Inserted components, Press-fit connectors, etc. | Inserted components, Press-fit connectors, etc. | ||
Inspection items | Voids, bridges, through-hole solder filling, foreign matter/solder scraps, presence/absence of leads, etc. (selectable depending on the object to be inspected) |
||||
Imaging system | Imaging system | 3D-slice imaging by using parallel CT | |||
Imaging resolution | 15,20,25,30µm Selectable by inspection target |
25,30µm Selectable by inspection target |
|||
X-ray source | Micro-focus closed tube | ||||
X-ray detector | Flat panel detector | ||||
Inspection target | Workpiece size | 150×100 ±0.2 ~ 610×515 ±0.2 mm | |||
Workpiece thickness | 1.00 mm ~ 5.00 mm | ||||
Workpiece weight | Less than 40.0 kg | ||||
Workpiece height* | 95 mm | 230 mm (Optional: 265 mm) |
335 mm |
