Brand: DCT
Injet®
PCBA/STENCIL/SQUEEGEE CLEANING
Features:
INJET cleaning machines are using high pressure spray-in-air technology for cleaning and rinsing process. They are built as one or multichamber devices, due to requested application and needed cleaning capacity. This technology is very effective for wide range of parts to clean as a stencils, misprinted PCBs, squeegees, pumprints, soldered PCBs and also maintenance parts cleaning applications.Call for at Demo
_Specifications_
| Model | Injet 388 CD | Injet 388 CRD | Injet 388 CRRD |
| No. of Chambers | 1 | 1 | 1 |
| Processes | cleaning | drying | cleaning | rinsing | drying | cleaning | rinsing | rinsing | drying |
| Device dimensions | 800 x 1280 x 1650 mm | 1050 x 1325 x 1850 mm | 1050 x 1325 x 1850 mm |
| Max. dimension of Cleaned Part | 190 x 860 x 790 mm | 190 x 860 x 790 mm | 190 x 860 x 790 mm |
| Weight( without cleaning fluids) | 250 kg | 350 kg | 350 kg + 210 kg |
| Internal Mechanical filteration | cleaning: 20-100 μm | cleaning: 20-100μm , rinsing: 5-20μm | cleaning: 20-100μm , rinsing: 5-20μm |
Brand: DCT
Airjet®
REFLOW & SOLDERING PARTS CLEANING
Features:
AIRJET cleaning machines are using for cleaning and rinsing process technology of air-bubbles in cleaning bath. These devices are designed for applications of maintenance cleaning, especially soldering frames, pallets, masks, reflow oven filters, wave soldering machine parts etc. Offering high capacity and big process chamber sizes, mostly built as a multi-chamber solutionsCall for at Demo
_Specifications_
| Model | Airjet 366/486 | Airjet 366/486 CR | Airjet 366/486 CRD |
| Number of chambers | 2 | 3 | 3 |
| Processes | cleaning | rinsing | cleaning | rinsing | cleaning | rinsing | drying |
| Device dimensions | 366: 1280 x 650 x 950 mm 486: 1550 x 900 x 950 mm | 366: 1280 x 650 x 950 mm 486: 1550 x 900 x 950 mm | 366: 1280 x 650 x 950 mm 486: 1550 x 900 x 950 mm |
| Weight (without cleaning fluids) | 366: 170 kg | 486: 250 kg | 366: 170 kg | 486: 250 kg | 366: 170 kg | 486: 250 kg |
Brand: DCT

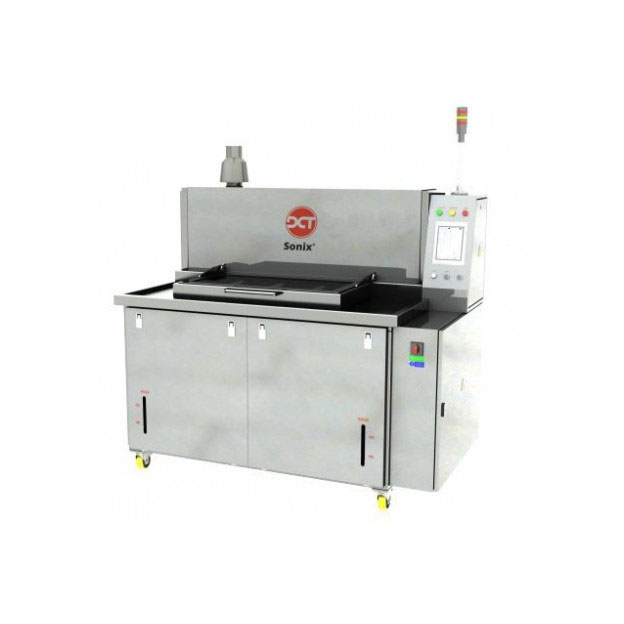

Sonix®
GLUE & CONFORMAL COATING CLEANING
Features:
SONIX cleaning machines are using ultrasonic technology for cleaning process, rinsing process is provided by air -bubbles. Due to high efficiency of ultrasonic cleaning are these devices designed mainly for removing of cured varnishes or special degreasing applications. Ultrasonic technology can be use also for PCB flux cleaning, if all components and materials use on PCB are compatible with ultrasonic energy.Call for at Demo
_Specifications_
| Model | Sonix 355 CRRD | Sonix 943 CRD |
| Number of chambers | 4 | 1 |
| Processes | cleaning | rinsing | rinsing | drying | cleaning | rinsing | drying |
| Device dimensions | 1360 x 972 x 1243 mm | 1842 x 1070 x 1595 mm |
| Weight (without cleaning fluids) | 400 kg | 660 kg |
