Soldering Robot


Brand: KBC, Korea

AutoRo-7634

AutoRo-7634 is a 4-axis based desktop robot with automatic soldering function.
  • It is simple to create a program using a touch type APC and is easy to learn.
  • As a Windows-based dedicated program, it can control I/O and LAN PORT, so it is highly scalable.
  • In order to prevent the flux contained in the wire solder from scattering, a perforation system is applied to the lead feeder.
  • The soldering iron unit can be adjusted in a 360° direction for a variety of tasks.
  • In the soldering process, the soldering tip has fast heat recovery and long life.
  • It is a Windows-based dedicated program and has high scalability.
  • Production and defect rate management can be efficiently managed by using the report creation function for defect management.

_Specifications_

Cutting Speed 0~1000mm/sec.
Power Supply 200W
Output voltage AC36V, 400KHZ
Temperature control range 50~600℃
Ambient temperature 40℃
Temperature error range ±2℃
Material Aluminum Alloy
Size 110×200×200㎜
Weight 4.8kg
Iron tip and ground resistance <2Ω
Leakage voltage <2mV
Tip-charged body IR >5MΩ
Electromagnetic heating core Electromagnetic heating core

Brand: KBC, Korea

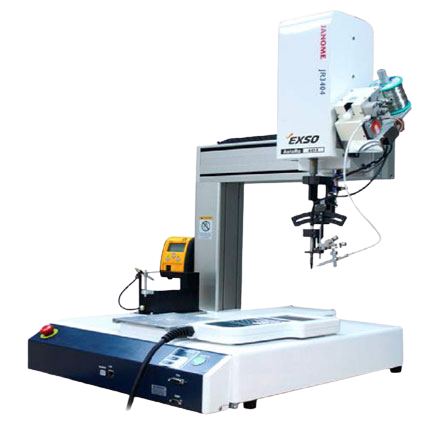

AutoRo-5634

  • It is possible to Select high frequency temperature control unit (100W or 230W) It is equipped with tip production equipment, and it is possible to make various customized products with the advantage of the manufacture
  • Efficient size and easy installation make it easy to install the equipment. High efficiency direct heating method was applied to the soldering tip. V-cut system is applied to lead feeder for prvention of flux-shatter
  • It can be applied to various products and the soldering temperature can be freely set. (Lead-free digital soldering station ex: LedSol 300, EHF-4230, EHF-4100)
  • Soldering iron can be adjusted in various directions to prevent damage to PCB and parts
  • Numerical control setting temperature (normal temperature condition: ± 1 ℃) Easy programming and easy to learn, with portable LCD teaching pendant. In soldering process, solder tip has fast heat recovery and long life
  • Application tip: EXSO ERT TIP, high frequency tip
  • HEAD UNIT is applied both point and line works
  • Sound hint system. There is an alarm before the completion of each desoldering and soldering

_Specifications_

TechnicalSpecifications
AutoRo 5634
Input VoltageAC/220V
Power Consumption80W, 100W, 230W (selectable)
Temperature Control Range100℃~500℃
Axis4axes
X&Y400 × 400mm
Scope of WorkZ100mm
R355°
X&Y600mm/sec [6~600mm/sec]
SpeedZ300mm/sec [3~300mm/sec]
R600°/sec [6~600mm/sec]
RepeatX&Y±0.02mm
Z±0.02mm
Accuracy
R`±0.02°
Size720×700×810mm
Weight66kg
Program CapacityMAX. 999 programs
Spply Air Pressure4~5kg/㎠
Cleaning MethodAIR BLOW
IRON UP/DOWNAIR CYLINDER

We’d love to help you boost your production efficiency.
Contact us.


    Brand: KBC, Korea

    AutoRo-4414

    • Robust construction to withstand the maximum speed of 900mm / sec
    • When the camera is mounted on the Z axis, when the robot arrives at the stop point, Reduced standby time by 50% compared to existing robots
    • LAN port is included as a standard, so it can control several robots by PC
    • USB memory port for data backup
    • Basic mountings: Soldering station (LedSol 300-1, EHF-4100, EHF-4230), Soldering head unit, Leader feeder, feeder tube
    • Easy Teaching Pendant (Optional)
    • Lead smoke fume extractor (optional): Digital type / Analog type
    • Air compressor (optional)
    • Color monitor & camera (optional)

    _Specifications_

    TechnicalSpecifications
    AutoRo 4414
    Input VoltageAC/220V
    Power Consumption80W, 100W, 230W (selectable)
    Temperature Control Range100℃~500℃
    Axis4axes
    X&Y400 × 400mm
    Scope of WorkZ150mm
    R360°
    X&Y900mm/sec [9~900mm/sec]
    SpeedZ400mm/sec [4~400mm/sec]
    R900°/sec [9~900mm/sec]
    RepeatX&Y±0.01mm
    Z±0.01mm
    Accuracy
    R±0.008°
    Size584×631×894mm
    Weight52kg
    Program CapacityMAX. 999 programs
    Spply Air Pressure4~5kg/㎠
    Cleaning MethodAIR BLOW
    IRON UP/DOWNAIR CYLINDER
